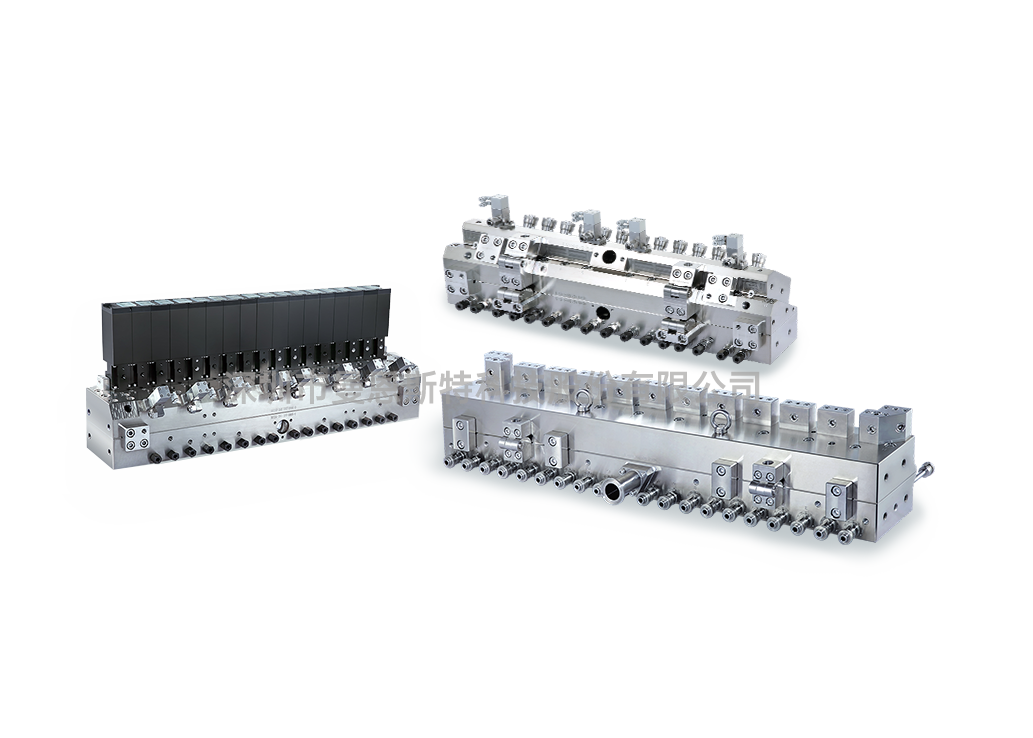

Metal Slot Die

Manst specializes in the coating technology field. Starting from addressing customer product pain points and driving process innovation, it has gradually developed a diverse matrix of coating slot die products tailored to meet customer needs. These products offer personalized choices such as various adjustment methods, single-layer multi-slurry coating, multi-layer coating, and coating slot die made from different materials.

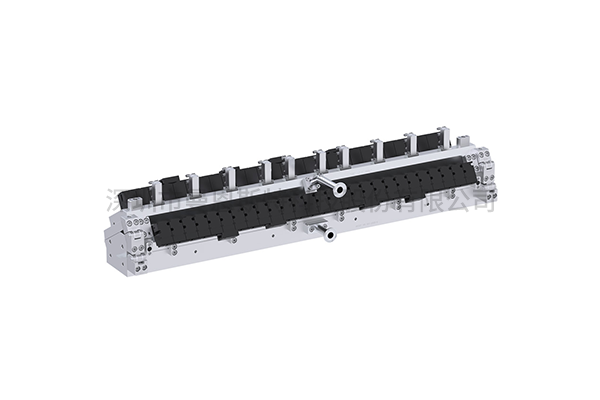

New Continuous Double-Layer Coating Die

The new continuous double-layer coating die employs a precision slot-die extrusion wet coating technology. It features two independent coating flow channels, allowling simultaneous double-layer coating for continuous dual-layer applications. Both the upper and middle parts of the die are equipped with electric actuators, enabling closed-loop adjustment of the transverse coating areal density.

Detailed Introduction

Product Advantages

1.Visualized and automated process adjustment;

2.Built-in software for controlling areal density in TD and MD directions;

3.Fewer wiring connections for bus interfaces, resulting in faster response times;

4.Optional wet film thickness measurement system;

5.Optional feeding system;

6.Optional independent dispensing system.

Product Parameters

Adjustment Method	Fully Automated Upper and Lower Systems	Material	SUS630
Cavity Structure	Single Cavity, (Customizable)	Coating Method	Continuous
Flow Channel Flatness（μm/m）	≤3	Lip Straightness（μm）	≤3
Total Length L(mm)	≤2000	Width W(mm)	Typical 165mm（Customizable）
Lower Die Thickness H(mm)	Typical 70mm（Customizable）	Maximum Coating Width (mm)	Customizable
Adjustment Spacing (mm)	45（Customizable）	Upper Layer Adjustment Precision (μm)	±1
Lower Layer Adjustment Accuracy (μm)	±1	Dispensing Function	Yes
Place of Origin	Shenzhen, Guangdong

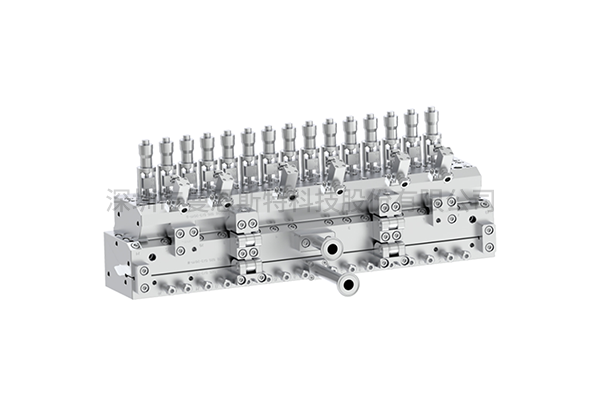

Double-Layers Integrated Coating Slot Die

The double-layer coating die features a specialized flow channel and adjustable structure, enabling independent control of double-layer areal density while preventing material mixing, and is compatible with existing coaters. This die is equipped with a lip misalignment adjustment function, and supports the coating of upper and lower insulating slurry layers, making it ideal for double-layer co-extrusion processes. By utilizing special alloys and an industry-first coating technology, it enhances wear and corrosion resistance, reduces battery safety risks, and supports customized cavity and lip designs.

Detailed Introduction

Product Advantages

1.Mainly suitable for continuous coating

2.Compatible with all models

3.Single-layer coating available

4.Online shim replacement,simple operation

5.Self-cleaning flow channel effectively reduces local edge anomalies

6.Independent edge coating function

Product Parameters

Adjustment Method	Push-pull-rod and micrometer head adjustment	Material	SUS630
Cavity Structure	Single Cavity, (Customizable)	Coating Method	Intermittent
Flow Channel Flatness（μm/m）	≤3	Lip Straightness（μm）	≤3
Total Length L(mm)	≤2000	Width W(mm)	Typical 165mm（Customizable）
Lower Die Thickness H(mm)	Typical 115mm（Customizable）	Maximum Coating Width (mm)	Customizable
Adjustment Spacing (mm)	45（Customizable）	Upper Layer Adjustment Precision(μm)	2.5
Dispensing Function	Yes	Place of Origin	Shenzhen, Guangdong

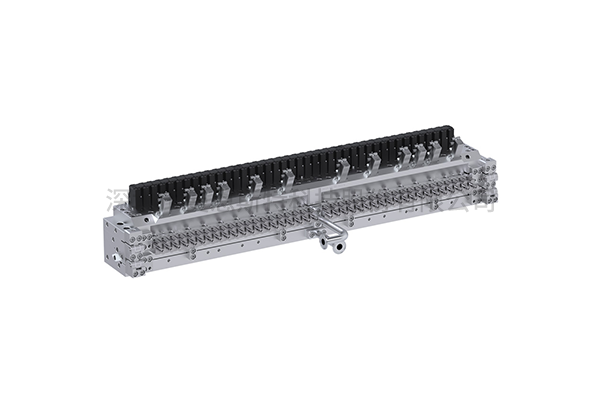

New Integrated Dual-Layer Coating slot Die

The novel integrated dual-layer coating slot die, as a precision slot extrusion wet coating technology, features two coating channels enabling simultaneous dual-layer application for continuous coating operations. Both the upper and middle layers of the die incorporate electric actuators, facilitating closed-loop adjustment of lateral coating density to accommodate both continuous and intermittent coating processes.

Detailed Introduction

Product Advantages

1.Process control visualisation and automation;

2.Includes TD and MD directional face density control software;

3.Bus interfaces require minimal wiring and offer rapid response times.

4.Optional wet film thickness measurement system;

5.Optional feeding system;

6.Independent dispensing system available.

Product Parameters

Adjustment Method	Fully Automated Upper and Lower Systems	Material	SUS630
Cavity Structure	Single Cavity (Customizable)	Coating Method	Continuous & Intermittent
Flow Surface Flatness (μm/m)	≤3	Lip Straightness (μm)	≤3
Total Length L (mm)	≤2000	Width W (mm)	Standard 165mm (Customizable)
Lower Plate Thickness H (mm)	Standard 115mm (Customizable)	Maximum Coating Width (mm)	Customizable
Adjustment Spacing (mm)	30 (Customizable)	Upper Layer Adjustment Accuracy (μm)	±1
Lower Layer Adjustment Accuracy (μm)	±1	Dispensing Function	Available
Place of Origin	Shenzhen, Guangdong
